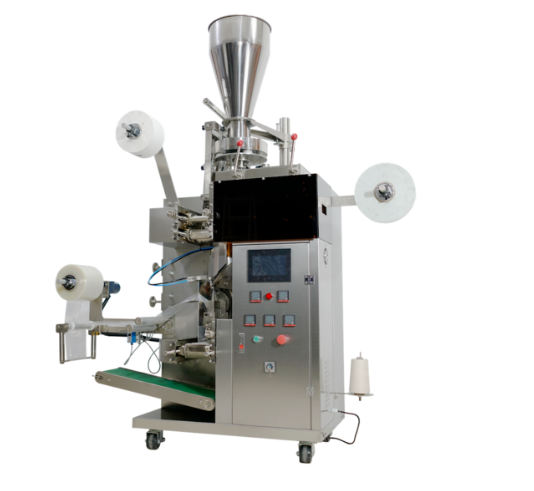

YS-169 New Generation Tea bag packing machine with outer envelope

YS-169 New Generation Tea bag packing machine with outer envelope

Characteristic

1、The machine is suitable for the non-returnable packaging of the inner and outer bag of

small particulate materials such as: tea, herbal tea, health tea grass-root type and so on.

2、Inner and outer bag's film drawing is controlled by the stepper motor, stable bag length

and accurate positioning.

3、The temperature controller is adjusted by PID to make the temperature control more

accurate.

4、Overall machine movement is controlled by PLC, with human-machine interface display,

ensure health of products

5、Packing material：filter paper, thread, composite membrane and labels.

6、Sealing Type: Three sides sealing.

Technical Parameters

Weight：3 - 10 g（ 1.6 ~ 26 ml ）

Inner bag size： ( L ) ：50 - 70 mm  ( W ) ：45 - 80 mm

Outer bag size：长 ( L ) ：80 - 120mm 宽 ( W ) ：75 - 95 mm

Packaging speed：30-40 bags / min

Dimension ( L*W*H )：1750*740*1950mm

Machine Weight：550 kg

Power：AC220V/ 50Hz /3.7kw

Compressor Pressure ：≥0.4m³/min

Optional Equipments

Barcode printer
