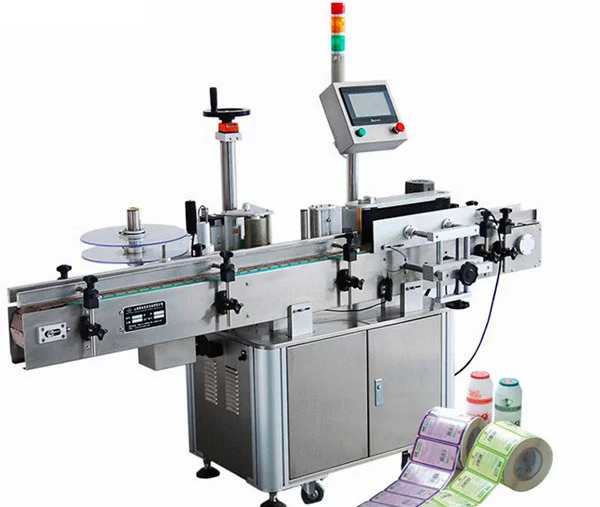

YSM-201 Round Bottle Labeling Machine

The fully automatic star wheel round bottle labeling machine is suitable for labeling round bottles in pharmaceutical,

food, daily chemical and other industries. It can label full circumferential labels and semi-circular bottles. An optional

automatic turntable bottle unscrambler can be directly connected to the front-end production line and automatically

feed bottles into the labeling machine to increase efficiency. Optional ribbon coding and labeling machine can print

production date and batch number online, reducing the bottle packaging process and improving production efficiency.

Basic use

1. Suitable for labeling round bottles in pharmaceutical, food, daily chemical and other industries. Full

circumferential labeling and semi-circular labeling can be applied.

2. An optional automatic rotary bottle unscrambler can be directly connected to the front-end production line

and automatically feed bottles into the labeling machine to increase efficiency.

3. An optional ribbon coding and labeling machine can be used to print production date and batch number online,

reducing the bottle packaging process and improving production efficiency.

Scope of application

Applicable tags

Self-adhesive labels, self-adhesive films, electronic supervision codes, barcodes, etc.

Applicable Products

Products requiring labels or films to be attached to the circumferential surface

Application industry

Widely used in food, medicine, cosmetics, daily chemicals, electronics, hardware, plastics and other industries

Applications

PET round bottle labeling, plastic bottle labeling, food cans, etc.

   3. Labeling examples

4. Working process

        *Core working principle: Put the product on the conveyor belt and enter the bottle dividing mechanism. After the bottle

dividing mechanism separates the products, the sensor detects the passing of the product and sends a signal back to the labeling

control system. At the appropriate position, the control system controls the corresponding motor to send out the label and

Attach it to the position where the product is to be labeled, and cover the label at the same time. The attaching action of a label

is completed.

  5. Technical parameters: The following are the technical parameters of standard models. Other special requirements and functions

can be customized.

Labeling accuracy：±1mm (excluding label and product's tolerance)

Labeling speed: 80~120pcs/min

Applicable product size: Diameter 40mm~60mm

Applicable tags size: Length:  6mm~50mm, Label width

Applicable power supply : 220V/50Hz

Power:

570W(Traction step)980W(traction servo)

Total Weight: About 220kg

Overall size

(length*width*height) 2000mm*100mm*1400mm

6. Functional features

◆ Card sorting is stable, using advanced vacuum suction-sorting-reverse wheel technology to sort cards, and

the sorting rate of cards and protective films is much higher than that of ordinary card sorting mechanisms;

◆ The card labeling speed is high, and the stable speed can reach more than 200 pieces/minute for various

protective films;

◆ It has a wide range of applications and can be used for labeling various protective films and card items;

◆ The labeling accuracy is stable, and the product is conveyed by clamping the product up and down. The

conveying is stable and the labeling accuracy is ensured;

◆ The ingenious design of the structural combination of mechanical adjustment parts and label winding, and

the 6 degrees of freedom fine adjustment of the labeling position are convenient, making the conversion

between different products and label winding simple and time-saving;

◆ Intelligent control, automatic photoelectric tracking, with the functions of labeling nothing, automatic

correction without labels and automatic label detection to prevent missed labeling and label waste;

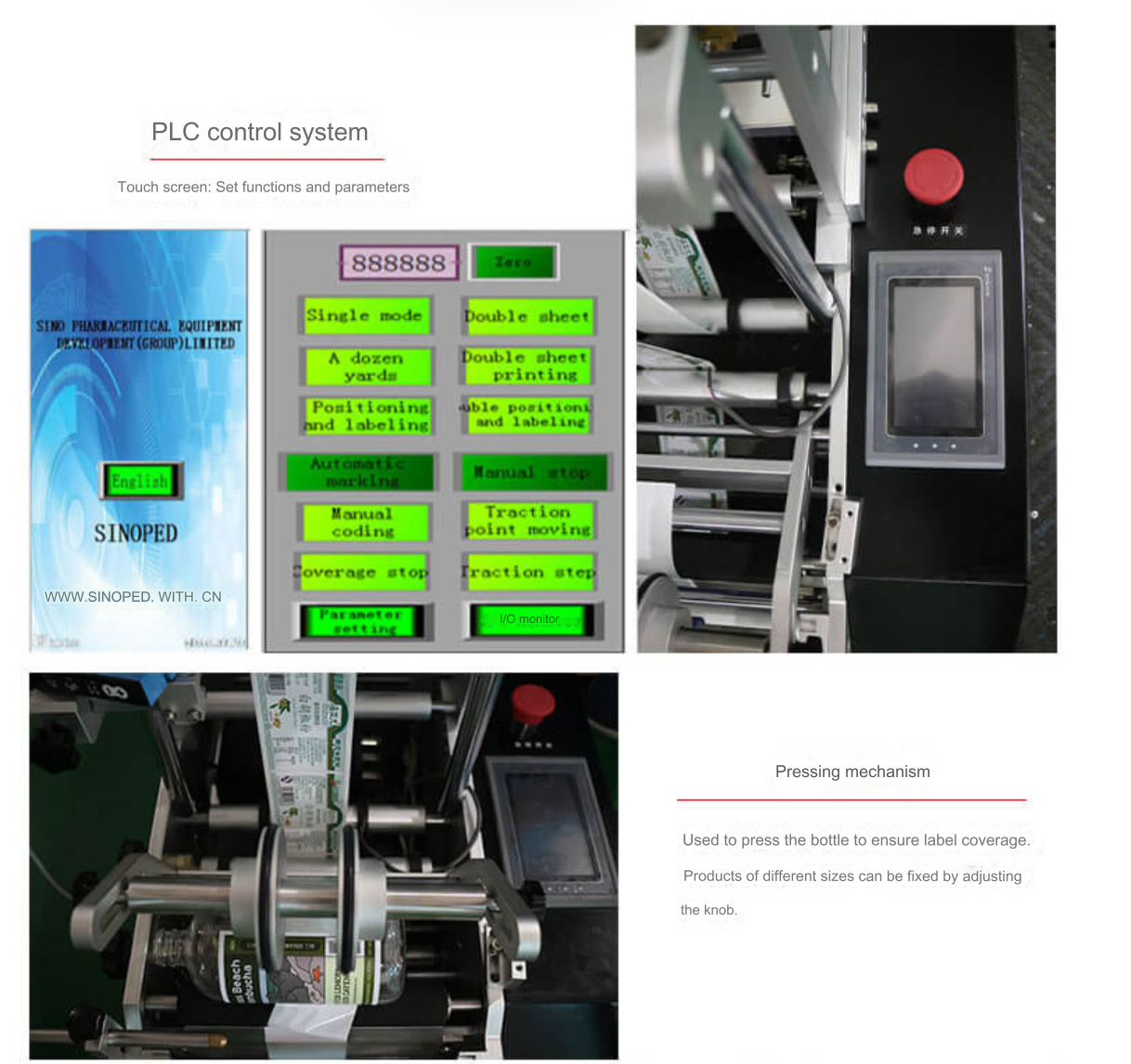

◆ High stability, the wear-resistant electronic control system composed of Panasonic PLC + Weilon touch

screen + Panasonic needle electric eye + German Sik label electric eye supports 7×18 hours of operation

of the equipment;

◆ It has fault alarm function, production counting function, power saving function, production number

setting prompt function, and parameter setting protection function.

7. Optional functions and components

①Thermal coding/inkjet coding function;

②Automatic material collection function (considered based on product);

③Add labeling device;

④Other functions (customized according to customer requirements).
